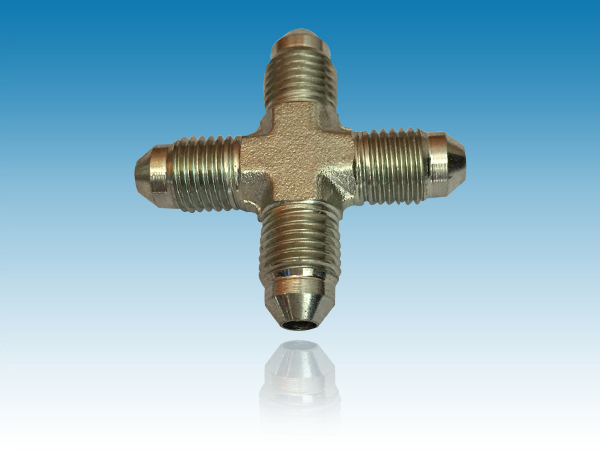

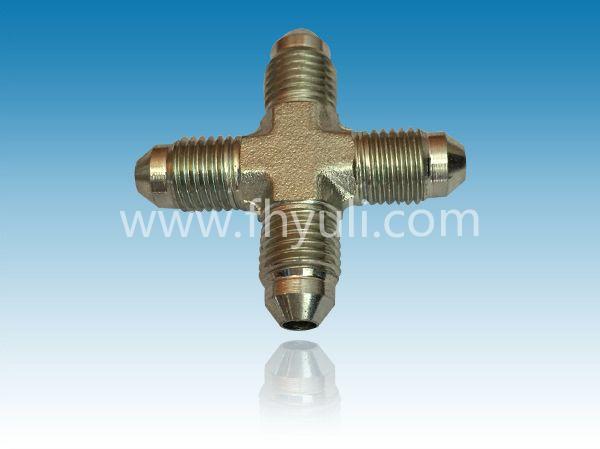

【產品名稱】 美制JIC螺紋37°擴口式四通接頭 2650系列
【所屬分類】 美制JIC螺紋37°接頭 【產品型號】 2650 【產品品牌】 寧吉羽立 NJ 【生產廠家】 寧波市寧吉羽立流體設備有限公司
產品詳情
| 品牌： | NJ |
| 型號： | 2650 |
| 材質： | 碳鋼 |
| 規格： | 四通接頭 |
| 加工定制 | 是 |
| 適用范圍： | 機械設備 |
| 螺紋類型： | 直螺紋 |
| 鏈接方式 | 螺紋 |
| Product ID | Descr iption | TUBE O.D. | B1 SAE | B2 SAE | B3 SAE | B4 SAE | B1 ILL | B2 ILL | B3 ILL | B4 ILL | M1 TH | M2 TH |
| 2650-02-02-02-02-FG | 02MJ-02MJ-02MJ-02MJCrossForg | 1/8 | 5/16-24 | 5/16-24 | 5/16-24 | 5/16-24 | 0.062 | 0.062 | 0.062 | 0.062 | 0.77 | 0.77 |
| 2650-04-04-04-04-FG | 04MJ-04MJ-04MJ-04MJCrossForg | 1/4 | 7/16-20 | 7/16-20 | 7/16-20 | 7/16-20 | 0.172 | 0.172 | 0.172 | 0.172 | 0.89 | 0.89 |
| 2650-04-04-04-04-SS | 04MJ-04MJ-04MJ-04MJCrossStnls | 1/4 | 7/16-20 | 7/16-20 | 7/16-20 | 7/16-20 | 0.172 | 0.172 | 0.172 | 0.172 | 0.89 | 0.89 |
| 2650-05-05-05-05-FG | 05MJ-05MJ-05MJ-05MJCrossForg | 5/16 | 1/2-20 | 1/2-20 | 1/2-20 | 1/2-20 | 0.234 | 0.234 | 0.234 | 0.234 | 0.95 | 0.95 |
| 2650-06-06-06-06-FG | 06MJ-06MJ-06MJ-06MJCrossForg | 3/8 | 9/16-18 | 9/16-18 | 9/16-18 | 9/16-18 | 0.297 | 0.297 | 0.297 | 0.297 | 1.06 | 1.06 |
| 2650-06-06-06-06-SS | 06MJ-06MJ-06MJ-06MJCrossStnls | 3/8 | 9/16-18 | 9/16-18 | 9/16-18 | 9/16-18 | 0.297 | 0.297 | 0.297 | 0.297 | 1.06 | 1.06 |
| 2650-06-08-06-08-FG | 06MJ-08MJ-06MJ-08MJCrossForg | 3/8 | 9/16-18 | 3/4-16 | 9/16-18 | 3/4-16 | 0.297 | 0.391 | 0.297 | 0.391 | 1.14 | 1.25 |
| 2650-08-08-08-08-B | 08MJ-08MJ-08MJ-08MJCrossBrass | 1/2 | 3/4-16 | 3/4-16 | 3/4-16 | 3/4-16 | 0.391 | 0.391 | 0.391 | 0.391 | 1.25 | 1.25 |
| 2650-08-08-08-08-FG | 08MJ-08MJ-08MJ-08MJCrossForg | 1/2 | 3/4-16 | 3/4-16 | 3/4-16 | 3/4-16 | 0.391 | 0.391 | 0.391 | 0.391 | 1.25 | 1.25 |
| 2650-08-08-08-08-SS | 08MJ-08MJ-08MJ-08MJCrossStnls | 1/2 | 3/4-16 | 3/4-16 | 3/4-16 | 3/4-16 | 0.391 | 0.391 | 0.391 | 0.391 | 1.25 | 1.25 |
| 2650-10-10-10-10-FG | 10MJ-10MJ-10MJ-10MJCrossForg | 5/8 | 7/8-14 | 7/8-14 | 7/8-14 | 7/8-14 | 0.484 | 0.484 | 0.484 | 0.484 | 1.45 | 1.45 |
| 2650-10-10-10-10-SS | 10MJ-10MJ-10MJ-10MJCrossStnls | 5/8 | 7/8-14 | 7/8-14 | 7/8-14 | 7/8-14 | 0.484 | 0.484 | 0.484 | 0.484 | 1.45 | 1.45 |
| 2650-12-12-12-12-FG | 12MJ-12MJ-12MJ-12MJCrossForg | 3/4 | 1-1/16-12 | 1-1/16-12 | 1-1/16-12 | 1-1/16-12 | 0.609 | 0.609 | 0.609 | 0.609 | 1.66 | 1.66 |
| 2650-12-12-12-12-SS | 12MJ-12MJ-12MJ-12MJCrossStnls | 3/4 | 1-1/16-12 | 1-1/16-12 | 1-1/16-12 | 1-1/16-12 | 0.609 | 0.609 | 0.609 | 0.609 | 1.66 | 1.66 |
| 2650-16-16-16-16-FG | 16MJ-16MJ-16MJ-16MJCrossForg | 1 | 1-5/16-12 | 1-5/16-12 | 1-5/16-12 | 1-5/16-12 | 0.844 | 0.844 | 0.844 | 0.844 | 1.81 | 1.81 |
| 2650-16-16-16-16-SS | 16MJ-16MJ-16MJ-16MJCrossStnls | 1 | 1-5/16-12 | 1-5/16-12 | 1-5/16-12 | 1-5/16-12 | 0.844 | 0.844 | 0.844 | 0.844 | 1.81 | 1.81 |
| 2650-20-20-20-20-FG | 20MJ-20MJ-20MJ-20MJCrossForg | 1-1/4 | 1-5/8-12 | 1-5/8-12 | 1-5/8-12 | 1-5/8-12 | 1.078 | 1.078 | 1.078 | 1.078 | 2.06 | 2.06 |
| 2650-20-20-20-20-SS | 20MJ-20MJ-20MJ-20MJCrossStnls | 1-1/4 | 1-5/8-12 | 1-5/8-12 | 1-5/8-12 | 1-5/8-12 | 1.078 | 1.078 | 1.078 | 1.078 | 2.06 | 2.06 |
| 2650-24-24-24-24-FG | 24MJ-24MJ-24MJ-24MJCROSSFORGED1 | 1-1/2 | 1-7/8-12 | 1-7/8-12 | 1-7/8-12 | 1-7/8-12 | 1.312 | 1.312 | 1.312 | 1.312 | 2.33 | 2.33 |
| 2650-24-24-24-24-SS | 24MJ-24MJ-24MJ-24MJCrossStnls | 1-1/2 | 1-7/8-12 | 1-7/8-12 | 1-7/8-12 | 1-7/8-12 | 1.312 | 1.312 | 1.312 | 1.312 | 2.33 | 2.33 |
| 2650-32-32-32-32-FG | 32MJ-32MJ-32MJ-32MJCrossForg | 2 | 2-1/2-12 | 2-1/2-12 | 2-1/2-12 | 2-1/2-12 | 1.781 | 1.781 | 1.781 | 1.781 | 3.06 | 3.06 |
| 2650-32-32-32-32-SS | 32MJ-32MJ-32MJ-32MJCrossStnls | 2 | 2-1/2-12 | 2-1/2-12 | 2-1/2-12 | 2-1/2-12 | 1.781 | 1.781 | 1.781 | 1.781 | 3.06 | 3.06 |
