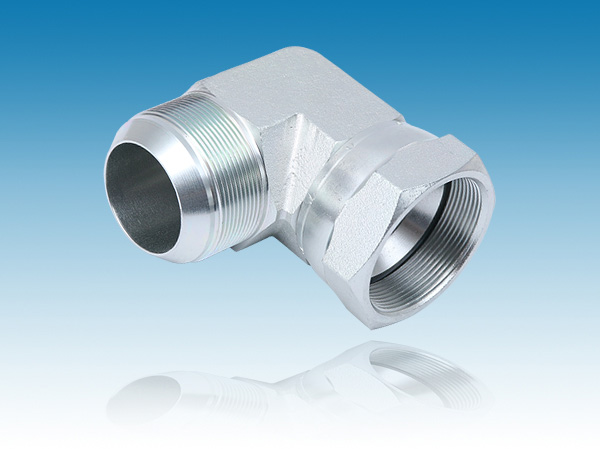

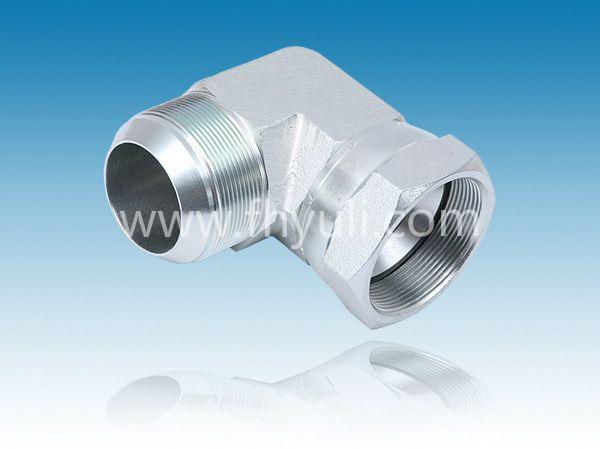

【產品名稱】 美制JIC螺紋37°直角接頭6500系列
【所屬分類】 美制JIC螺紋37°接頭 【產品型號】 6500 【產品品牌】 寧吉羽立 NJ 【生產廠家】 寧波市寧吉羽立流體設備有限公司
產品詳情
| 品牌： | NJ |
| 型號： | 6500 |
| 材質： | 碳鋼 |
| 規格： | 90°彎管 |
| 加工定制 | 是 |
| 適用范圍： | 機械設備 |
| 螺紋類型： | 直螺紋 |
| 鏈接方式 | 螺紋 |
| Product ID | TUBE O.D. | B1 SAE 37 | B2 SAE 37 | B1 DRILL | B2 DRILL | M LGTH | M4 LGTH | M6 LGTH | C HEX | Y FLATS |
| 6500-02-02-FG | 1/8 | 5/16-24 | 5/16-24 | 0.062 | 0.062 | 0.77 | 0.66 | 0.97 | 0.438 | 0.438 |
| 6500-03-03-FG | 3/16 | 3/8-24 | 3/8-24 | 0.125 | 0.125 | 0.83 | 0.67 | 1.00 | 0.50029 | 0.438 |
| 6500-04-04-FG | 1/4 | 7/16-20 | 7/16-20 | 0.172 | 0.172 | 0.89 | 0.65 | 1.00 | 0.563 | 0.438 |
| 6500-04-04-SS | 1/4 | 7/16-20 | 7/16-20 | 0.172 | 0.172 | 0.89 | 0.65 | 1.00 | 0.563 | 0.438 |
| 6500-04-06-FG | 1/4 | 7/16-20 | 9/16-18 | 0.172 | 0.297 | 1.05 | 0.87 | 1.25 | 0.688 | 0.562 |
| 6500-05-05-FG | 5/16 | 1/2-20 | 1/2-20 | 0.234 | 0.234 | 0.95 | 0.67 | 1.06 | 0.625 | 0.562 |
| 6500-05-06-FG | 5/16 | 1/2-20 | 9/16-18 | 0.234 | 0.297 | 0.95 | 0.87 | 1.25 | 0.688 | 0.562 |
| 6500-06-04-FG | 3/8 | 9/16-18 | 7/16-20 | 0.297 | 0.172 | 1.06 | 0.80 | 1.15 | 0.563 | 0.562 |
| 6500-06-06-FG | 3/8 | 9/16-18 | 9/16-18 | 0.297 | 0.297 | 1.06 | 0.87 | 1.25 | 0.688 | 0.562 |
| 6500-06-08-FG | 3/8 | 9/16-18 | 3/4-16 | 0.297 | 0.391 | 1.25 | 0.95 | 1.38 | 0.875 | 0.750 |
| 6500-08-06-FG | 1/2 | 3/4-16 | 9/16-18 | 0.391 | 0.297 | 1.25 | 0.91 | 1.29 | 0.688 | 0.750 |
| 6500-08-08-FG | 1/2 | 3/4-16 | 3/4-16 | 0.391 | 0.391 | 1.25 | 0.95 | 1.38 | 0.875 | 0.750 |
| 6500-08-10-FG | 1/2 | 3/4-16 | 7/8-14 | 0.391 | 0.484 | 1.33 | 1.12 | 1.62 | 1.000 | 0.875 |
| 6500-08-12-FG | 1/2 | 3/4-16 | 1-1/16-12 | 0.391 | 0.609 | 1.66 | 1.18 | 1.75 | 1.250 | 1.062 |
| 6500-10-08-FG | 5/8 | 7/8-14 | 3/4-16 | 0.484 | 0.391 | 1.45 | 1.09 | 1.52 | 0.875 | 0.875 |
| 6500-10-10-FG | 5/8 | 7/8-14 | 7/8-14 | 0.484 | 0.484 | 1.45 | 1.12 | 1.62 | 1.000 | 0.875 |
| 6500-10-12-FG | 5/8 | 7/8-14 | 1-1/16-12 | 0.484 | 0.609 | 1.66 | 1.18 | 1.75 | 1.250 | 1.062 |
| 6500-12-08-FG | 3/4 | 1-1/16-12 | 3/4-16 | 0.609 | 0.391 | 1.66 | 1.12 | 1.55 | 0.875 | 1.062 |
| 6500-12-10-FG | 3/4 | 1-1/16-12 | 7/8-14 | 0.609 | 0.484 | 1.66 | 1.16 | 1.66 | 1.000 | 1.062 |
| 6500-12-12-FG | 3/4 | 1-1/16-12 | 1-1/16-12 | 0.609 | 0.609 | 1.66 | 1.18 | 1.75 | 1.250 | 1.062 |
| 6500-12-16-FG | 3/4 | 1-1/16-12 | 1-5/16-12 | 0.609 | 0.844 | 1.81 | 1.40 | 2.00 | 1.500 | 1.312 |
| 6500-14-14-FG | 7/8 | 1-3/16-12 | 1-3/16-12 | 0.719 | 0.719 | 1.80 | 1.20 | 1.78 | 1.375 | 1.312 |
| 6500-16-12-FG | 1 | 1-5/16-12 | 1-1/16-12 | 0.844 | 0.609 | 1.81 | 1.34 | 1.91 | 1.250 | 1.312 |
| 6500-16-16-FG | 1 | 1-5/16-12 | 1-5/16-12 | 0.844 | 0.844 | 1.81 | 1.40 | 2.00 | 1.500 | 1.312 |
| 6500-20-20-FG | 1 1/4 | 1-5/8-12 | 1-5/8-12 | 1.078 | 1.078 | 2.06 | 1.67 | 2.31 | 2.000 | 1.625 |
| 6500-24-24-FG | 1 1/2 | 1-7/8-12 | 1-7/8-12 | 1.312 | 1.312 | 2.33 | 1.87 | 2.59 | 2.250 | 1.875 |
| 6500-32-32-FG | 2 | 2-1/2-12 | 2-1/2-12 | 1.781 | 1.781 | 3.06 | 2.43 | 3.38 | 2.875 | 2.500 |
