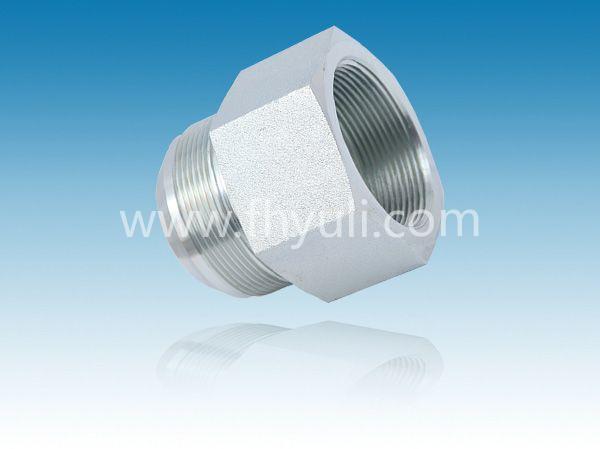

【產品名稱】 美制JIC螺紋37°直管接頭 2405系列
【所屬分類】 美制JIC螺紋37°接頭 【產品型號】 2405 【產品品牌】 寧吉羽立 NJ 【生產廠家】 寧波市寧吉羽立流體設備有限公司
產品詳情
| Product ID | Description | TUBE O.D. | B1 SAE 37 | A2 NPTF | B1 DRILL | L LGTH | C HEX |
| 2405- 02-02 | 02MJ-02FP Straight | 1/8 | 5/16-24 | 1/8-27 | 0.062 | 1.12 | 0.562 |
| 2405- 03-02 | 03MJ-02FP Straight | 3/16 | 3/8-24 | 1/8-27 | 0.125 | 1.13 | 0.562 |
| 2405- 03-04 | 03MJ-04FP Straight | 3/16 | 3/8-24 | 1/4-18 | 0.125 | 1.32 | 0.750 |
| 2405- 04-02 | 04MJ-02FP Straight | 1/4 | 7/16-20 | 1/8-27 | 0.172 | 1.19 | 0.562 |
| 2405- 04-04 | 04MJ-04FP Straight | 1/4 | 7/16-20 | 1/4-18 | 0.172 | 1.39 | 0.750 |
| 2405- 04-06 | 04MJ-06FP Straight | 1/4 | 7/16-20 | 3/8-18 | 0.172 | 1.45 | 0.875 |
| 2405- 04-08 | 04MJ-08FP Straight | 1/4 | 7/16-20 | 1/2-14 | 0.172 | 1.68 | 1.125 |
| 2405- 05-02 | 05MJ-02FP Straight | 5/16 | 1/2-20 | 1/8-27 | 0.234 | 1.17 | 0.562 |
| 2405- 05-04 | 05MJ-04FP Straight | 5/16 | 1/2-20 | 1/4-18 | 0.234 | 1.39 | 0.750 |
| 2405- 05-06 | 05MJ-06FP Straight | 5/16 | 1/2-20 | 3/8-18 | 0.234 | 1.06 | 0.875 |
| 2405- 06-02 | 06MJ-02FP Straight | 3/8 | 9/16-18 | 1/8-27 | 0.297 | 1.19 | 0.625 |
| 2405- 06-04 | 06MJ-04FP Straight | 3/8 | 9/16-18 | 1/4-18 | 0.297 | 1.40 | 0.750 |
| 2405- 06-06 | 06MJ-06FP Straight | 3/8 | 9/16-18 | 3/8-18 | 0.297 | 1.46 | 0.875 |
| 2405- 06-08 | 06MJ-08FP Straight | 3/8 | 9/16-18 | 1/2-14 | 0.297 | 1.69 | 1.125 |
| 2405- 06-12 | 06MJ-12FP Straight | 3/8 | 9/16-18 | 3/4-14 | 0.297 | 1.75 | 1.375 |
| 2405- 08-04 | 08MJ-04FP Straight | 1/2 | 3/4-16 | 1/4-18 | 0.391 | 1.55 | 0.875 |
| 2405- 08-06 | 08MJ-06FP Straight | 1/2 | 3/4-16 | 3/8-18 | 0.391 | 1.56 | 0.875 |
| 2405- 08-08 | 08MJ-08FP Straight | 1/2 | 3/4-16 | 1/2-14 | 0.391 | 1.79 | 1.125 |
| 2405- 08-12 | 08MJ-12FP Straight | 1/2 | 3/4-16 | 3/4-14 | 0.391 | 1.85 | 1.375 |
| 2405- 08-16 | 08MJ-16FP Straight | 1/2 | 3/4-16 | 1-11 1/2 | 0.391 | 2.10 | 1.625 |
| 2405- 10-04 | 10MJ-04FP Straight | 5/8 | 7/8-14 | 1/4-18 | 0.484 | 1.66 | 0.937 |
| 2405- 10-06 | 10MJ-06FP Straight | 5/8 | 7/8-14 | 3/8-18 | 0.484 | 1.67 | 0.937 |
| 2405- 10-08 | 10MJ-08FP Straight | 5/8 | 7/8-14 | 1/2-14 | 0.484 | 1.89 | 1.125 |
| 2405- 10-12 | 10MJ-12FP Straight | 5/8 | 7/8-14 | 3/4-14 | 0.484 | 1.95 | 1.375 |
| 2405- 10-16 | 10MJ-16FP Straight | 5/8 | 7/8-14 | 1-11 1/2 | 0.484 | 2.20 | 1.625 |
| 2405- 12-08 | 12MJ-08FP Straight | 3/4 | 1 1/16-12 | 1/2-14 | 0.609 | 2.05 | 1.375 |
| 2405- 12-12 | 12MJ-12FP Straight | 3/4 | 1 1/16-12 | 3/4-14 | 0.609 | 2.06 | 1.375 |
| 2405- 12-16 | 12MJ-16FP Straight | 3/4 | 1 1/16-12 | 1-11 1/2 | 0.609 | 2.30 | 1.625 |
| 2405- 14-08 | 14MJ-08FP Straight | 7/8 | 1 3/16-12 | 1/2-14 | 0.719 | 2.05 | 1.375 |
| 2405- 14-12 | 14MJ-12FP Straight | 7/8 | 1 3/16-12 | 3/4-14 | 0.719 | 2.06 | 1.375 |
| 2405- 16-12 | 16MJ-12FP Straight | 1 | 1 5/16-12 | 3/4-14 | 0.844 | 2.12 | 1.375 |
| 2405- 16-16 | 16MJ-16FP Straight | 1 | 1 5/16-12 | 1-11 1/2 | 0.844 | 2.35 | 1.625 |
| 2405- 16-20 | 16MJ-20FP Straight | 1 | 1 5/8-12 | 1 1/4-11 1/2 | 0.844 | 2.44 | 2.000 |
| 2405- 20-16 | 20MJ-16FP Straight | 1 1/4 | 1 5/8-12 | 1-11 1/2 | 1.078 | 2.47 | 2.000 |
| 2405- 20-20 | 20MJ-20FP Straight | 1 1/4 | 1 5/8-12 | 1 1/4-11 1/2 | 1.078 | 2.49 | 2.000 |
| 2405- 20-24 | 20MJ-24FP Straight | 1 1/4 | 1 5/8-12 | 1 1/2-11 1/2 | 1.078 | 2.49 | 2.375 |
| 2405- 24-16 | 24MJ-16FP Straight | 1 1/2 | 1 7/8-12 | 1 11-1/2 | 1.312 | 2.60 | 2.375 |
| 2405- 24-20 | 24MJ-20FP Straight | 1 1/2 | 1 7/8-12 | 1 1/4-11 1/2 | 1.312 | 2.62 | 2.375 |
| 2405- 24-24 | 24MJ-24FP Straight | 1 1/2 | 1 7/8-12 | 1 1/2-11 1/2 | 1.312 | 2.62 | 2.375 |
| 2405- 24-32 | MJ-FP Strt | 1 1/2 | 1 7/8-12 | 2-11-1/2 | 1.312 | 2.72 | 2.875 |
| 2405- 32-24 | 32MJ-24FP Straight | 2 | 2 1/2-12 | 1 1/2-11 1/2 | 1.781 | 2.95 | 2.875 |
| 2405- 32-32 | 32MJ-32FP Straight | 2 | 2 1/2-12 | 2-11 1/2 | 1.781 | 2.97 | 2.875 |
